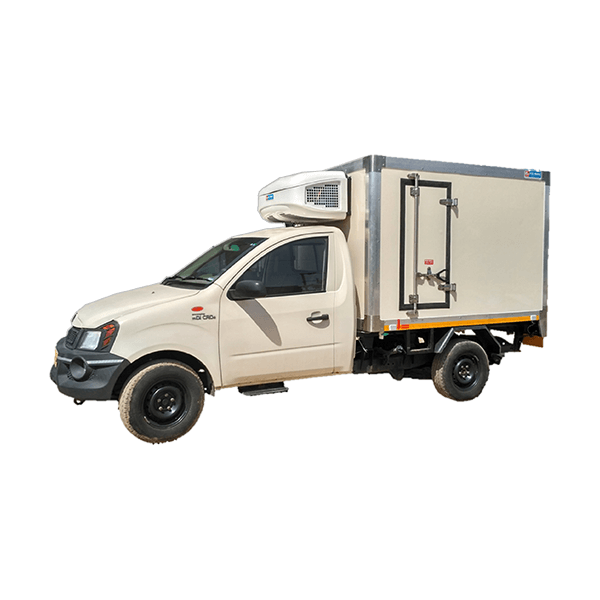

Eutectic Mobile Container

ICE MAKE – Eutectic Mobile Container is designed for multi-deliveries of Ice Cream, Frozen Foods, Bakery Products, and Fruits & Vegetables distribution. Our eutectic systems are engineered for vehicles that are suitably insulated to transport fresh and frozen produce. The eutectic plates are mounted inside a chamber, separate from the main load system. The storage compartment maintains the required temperature—either for frozen applications (-24 °C) or chilled applications (+2 °C to +8 °C)—via PCM pads. Power supply required for charging is 3-phase.

Features:

• Minimum maintenance
• No load on vehicle engine
• Lower operating cost
• Highly reliable
• Substantial power saving
• No emissions

Specifications:

• Insulation Thickness:
  • Frozen Application: 100 mm + 64 mm (Eutectic Plate)
  • Chilled Application: 80/100 mm + 64 mm (Eutectic Plate)
• Refrigeration System:
  • Air-Cooled with Electric Support
• Compressor Type:
  • Semi-sealed / Scroll Compressor
• Unit Running Time:
  • Frozen Application: 10 to 12 Hr.
  • Chilled Application: 4 to 5 Hr.
• Temperature Range:
  • Frozen: -24 °C after charging, -12 °C after 12–14 Hr.
  • Chilled: 0 °C after charging, +4 °C after 4–5 Hr.
• Backup Time:
  • Frozen Application: 12 to 14 Hr.
  • Chilled Application: 4 to 5 Hr.
