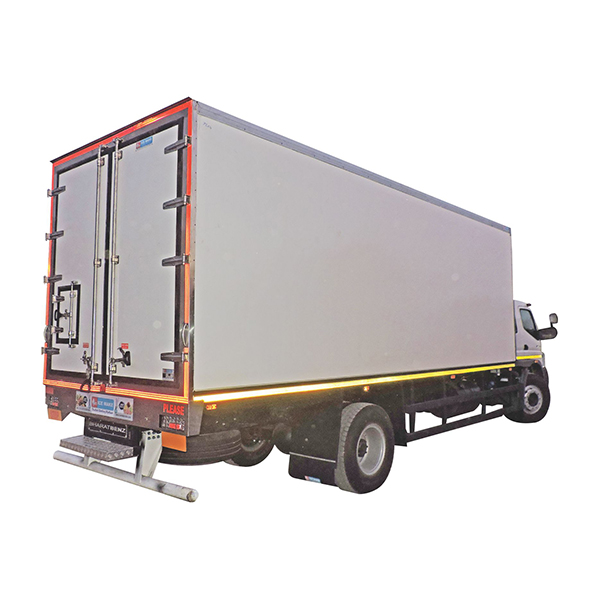

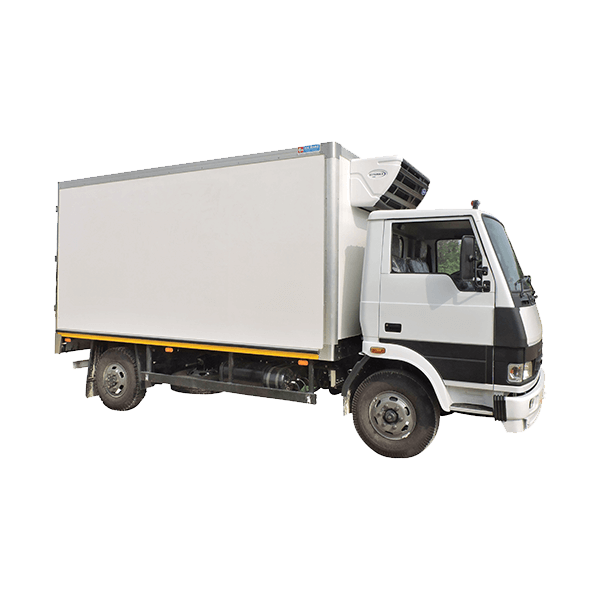

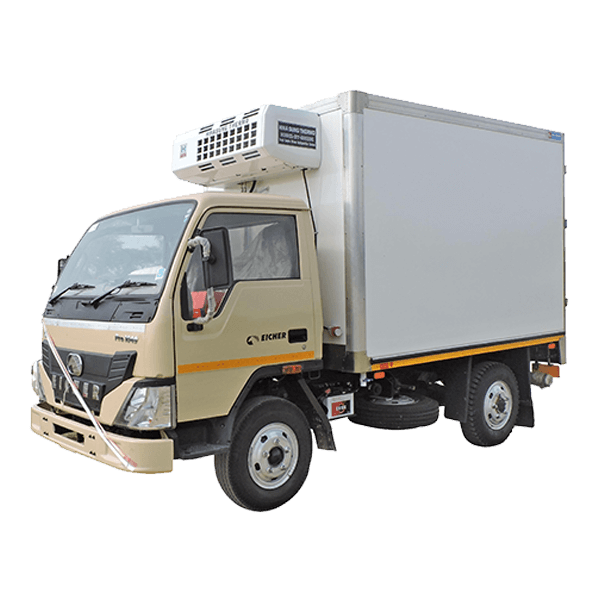

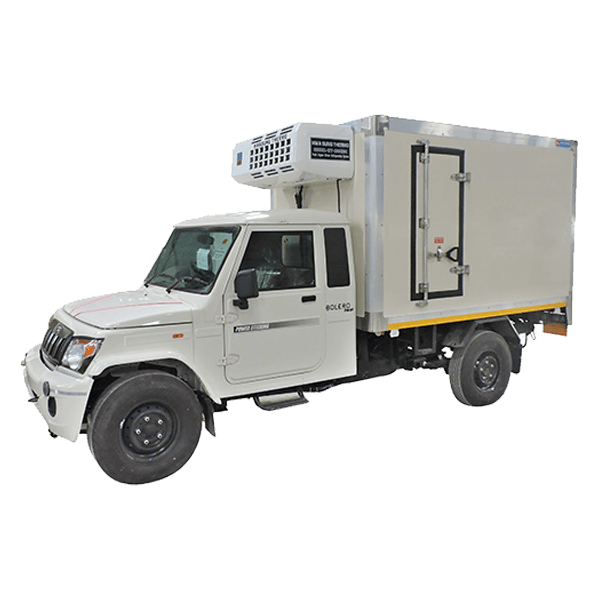

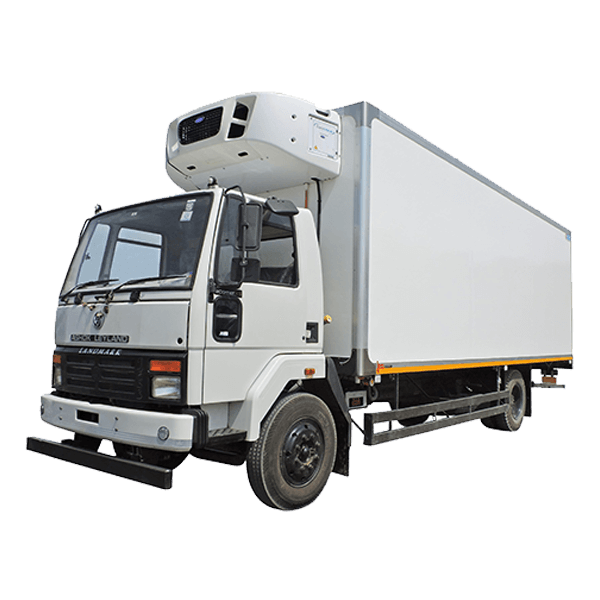

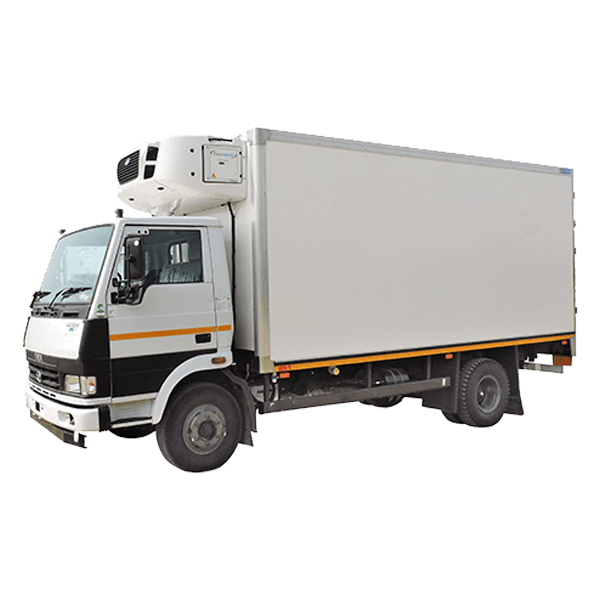

Ice Make Refrigerated Container is designed to transport with temperature (+15°C to -25°C) for all perishable foods on all types of vehicles such as small, mini truck & heavy loading truck. Our refrigerated container is built using the highest quality components and technology to perform highest and most thermal efficient for the greatest return on your investment. Our container is available in single or multi-door models, and offering an endless array of features and options. Ice Make Refrigerated Container can be customized to fit your unique needs. With the assistance of our dedicated design team and hands-on engineering support, we can help you design trailers to meet your specific operational requirements.
Features:
- Optimal Performance, Maximum Versatility
- Low Weight, More Freight
- Agile and Robust
- Superior Thermal Efficiency, Lower Operating Costs
- High Strength, Better Insulation
Refrigeration System:
- Carrier
- Thermo King
- Hwasung Thermo
Specification:

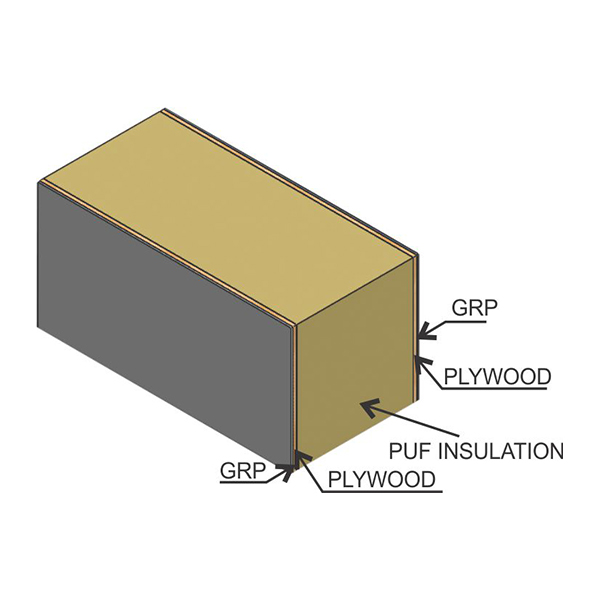

Type of Construction:
GRP Panel Heavy Structure with Pre-Fabricated Joint-less GRP (Glassfiber Reinforced Plastic) Single Panel. All Side Panels & Top Panels are made by Wooden Structure and Bottom Panel by Metal Structure

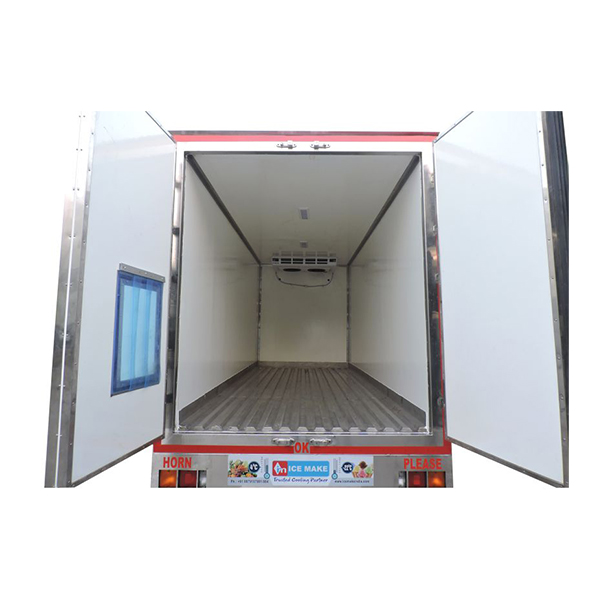

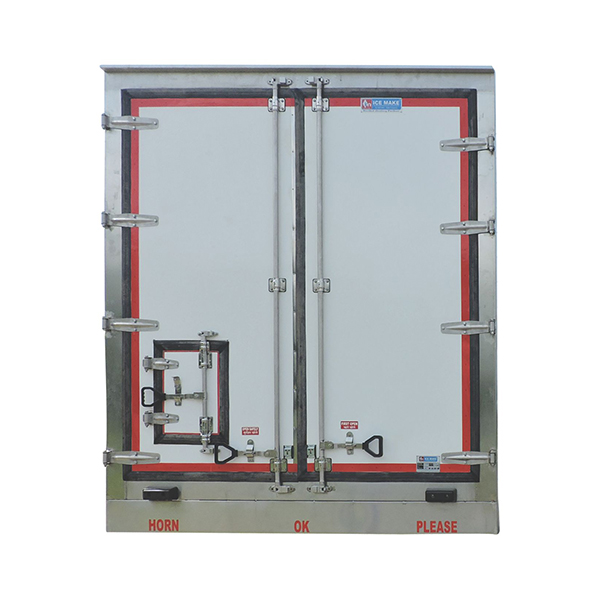

Door & Frame:
Doors with 80/100 mm thick as per requirement for maximum insulation and integrated thermal break. Doors available in fully open with window with 2 to 2.5 mm SS sheet 'C' profile frame, single door, door can be customized

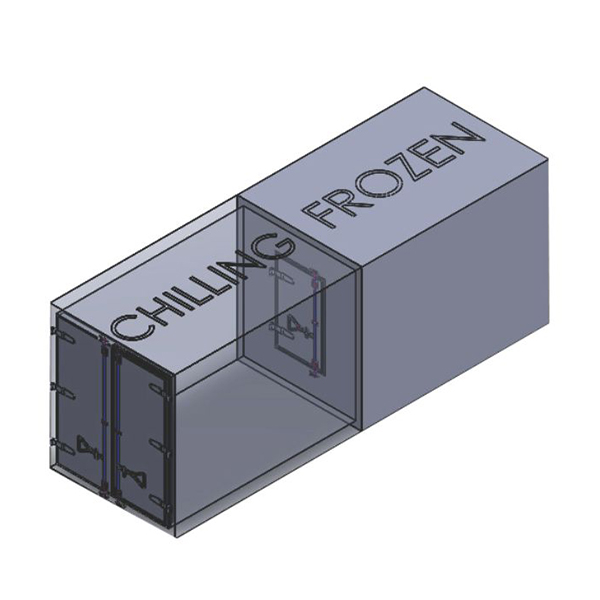

Multi Temp Transport:
As per client’s requirement and years of experience, we have been able to provide dual compartments facility suited to every type of transport of frozen or fresh products in small vehicle

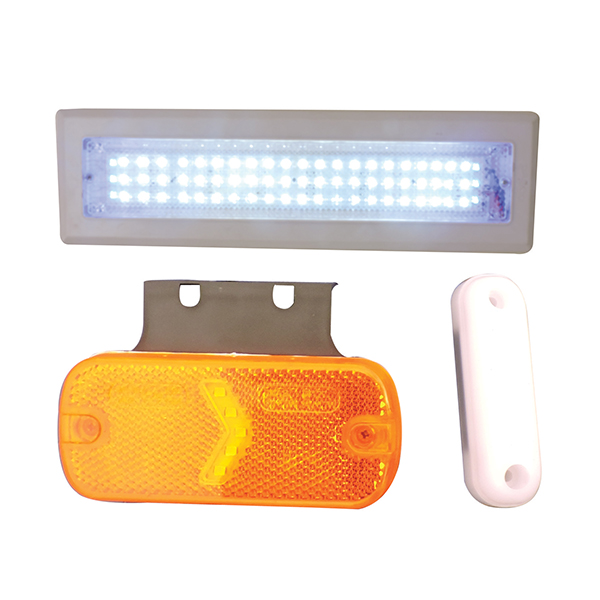

High Radiance Interior/Exterior LED Lighting:
LED ceiling lights with internal cabin switch and ideal durability. The safety lights make it clearly visible that the container is running or braking even from a long distance

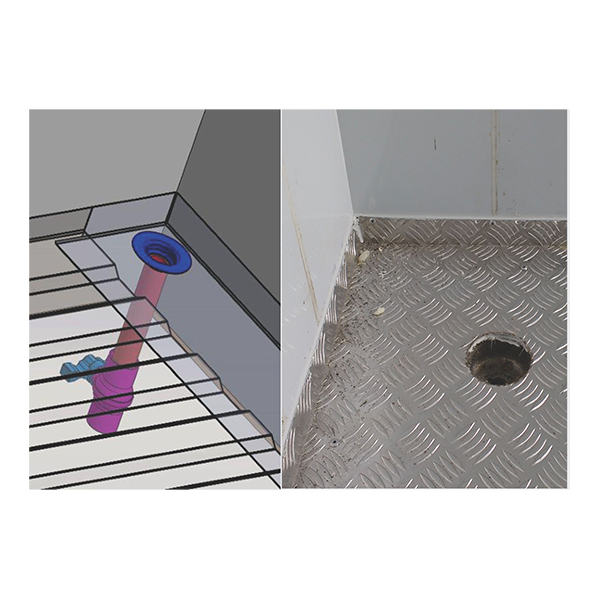

Drainage System:
Made by UPVC for complete draining of water coming from the insulated container

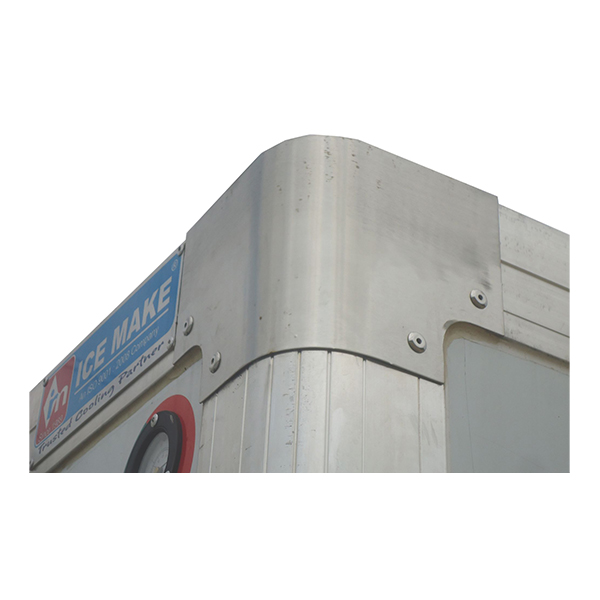

Anti-Shock Body Protection:
The external mouldings encasing the body frame are in anodized aluminium. Their high density and mono block bucket design provide enhanced resistance to everyday impacts and corrosion

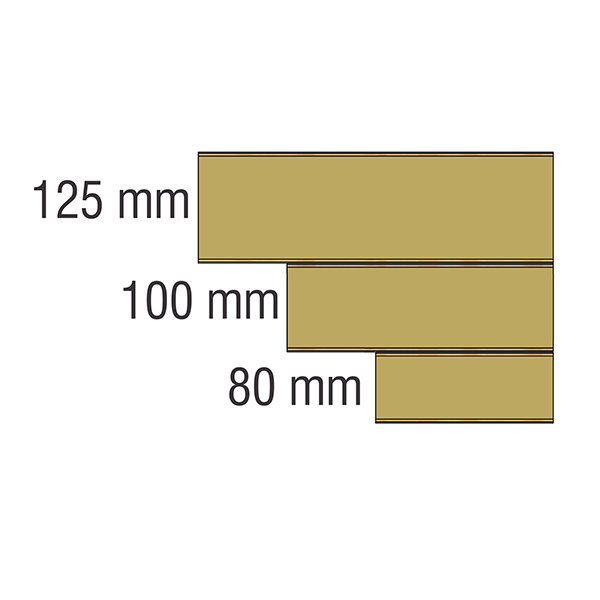

Panel Wall Thickness:
- 80 mm for Small Vehicle
- 100 mm for Mini Truck
- 125 mm for Heavy Loading Truck

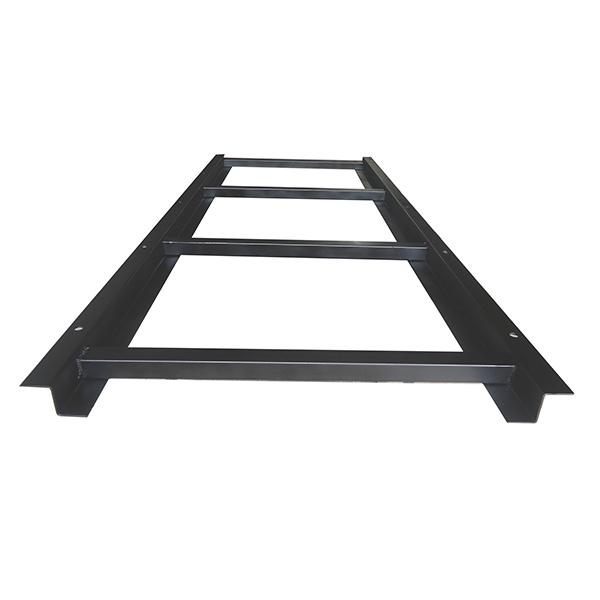

Backbone Sub Frame:
Made of MS sheet with 4/6/8 mm in thickness, specially fitted between chassis and container to protect the body against repeated loading, unloading, and operations
Foot Steps:
Available in foldable for heavy vehicle and fixed for small vehicle
Seal Gasket:
Anti-mislaying doors form an insulating and water resistant barrier with 4 lip seals and the door seal integrating an anti-thermal bridge

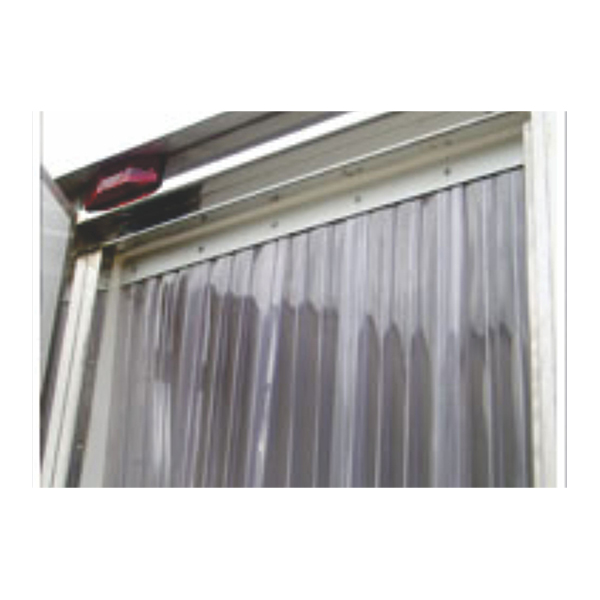

PVC Strip Curtains:
Variably fixed strip curtains inside doors to reduce temperature losses while partially unloading
Radium Line:
Yellow and red reflection radium for night operation as per RTO norms
Integrated Rear Protection:
For intensive smooth operation without damage, rear rubber buffer is fixed on chassis for rear protection. It contains combining resistance, very high energy absorption capacity and retained bearing functionality
Heavy Duty Handle and Hinges:
Made of S.S., fixed with door frame combining a very high level of rigidity and integrated protection, significantly reducing incident-related work and repair costs
Rigid Floor:
Outside GRP sheet, thickness (1.5 to 2 mm) & Inside 9mm or 19mm marine ply. Top material available in:
Aluminum T Profile
Chequered Plate
Corrugated Profile
S.S. Corrugated Profile
These floors protect the GRP panels against shocks from carts and trolleys.
